LNG Tank System View
Instrumentation Detail
Monitoring Software
JOYO provides a full turnkey LNG Tank Gauging System designed for accurate monitoring and safe operation of LNG storage tanks. The complete package includes:
JOYO successfully developed and deployed the first Made-in-China LNG level gauge, including the country’s first LTD gauge and LNG monitoring system. This advanced solution is now operating in LNG storage tanks across the Chinese market.
The system delivers highly reliable measurements and comprehensive tank monitoring through redundant instrumentation and intelligent software integration.

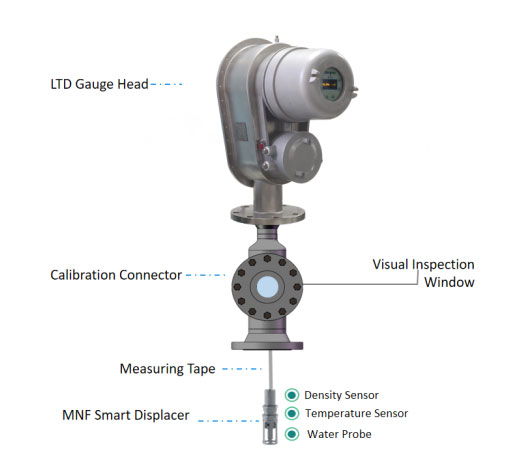

The BJLM-80L LTD Tank Gauge consists of:
Both the density sensor and temperature sensor are fully integrated inside the MNF displacer.
The BJLM-80L is specially designed for cryogenic bulk storage applications, providing combined Level, Temperature, and Density (LTD) measurements in a single instrument. This makes it ideal for LNG tank gauging, where detailed and accurate profiling is critical.

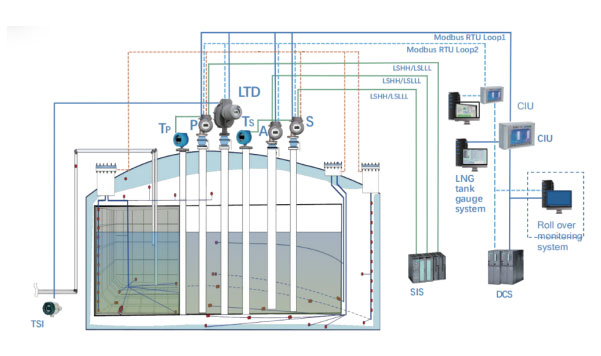

A typical LNG tank gauging solution includes:
All measurement data is connected to a PC-based monitoring platform, where the LNG Manager & Rollover Predictor software continuously operates to ensure system safety and operational efficiency.
The system is fully configurable, redundant, and can be directly integrated into the site’s upper-level DCS if required.
LNG Tank System View
Instrumentation Detail
Monitoring Software
